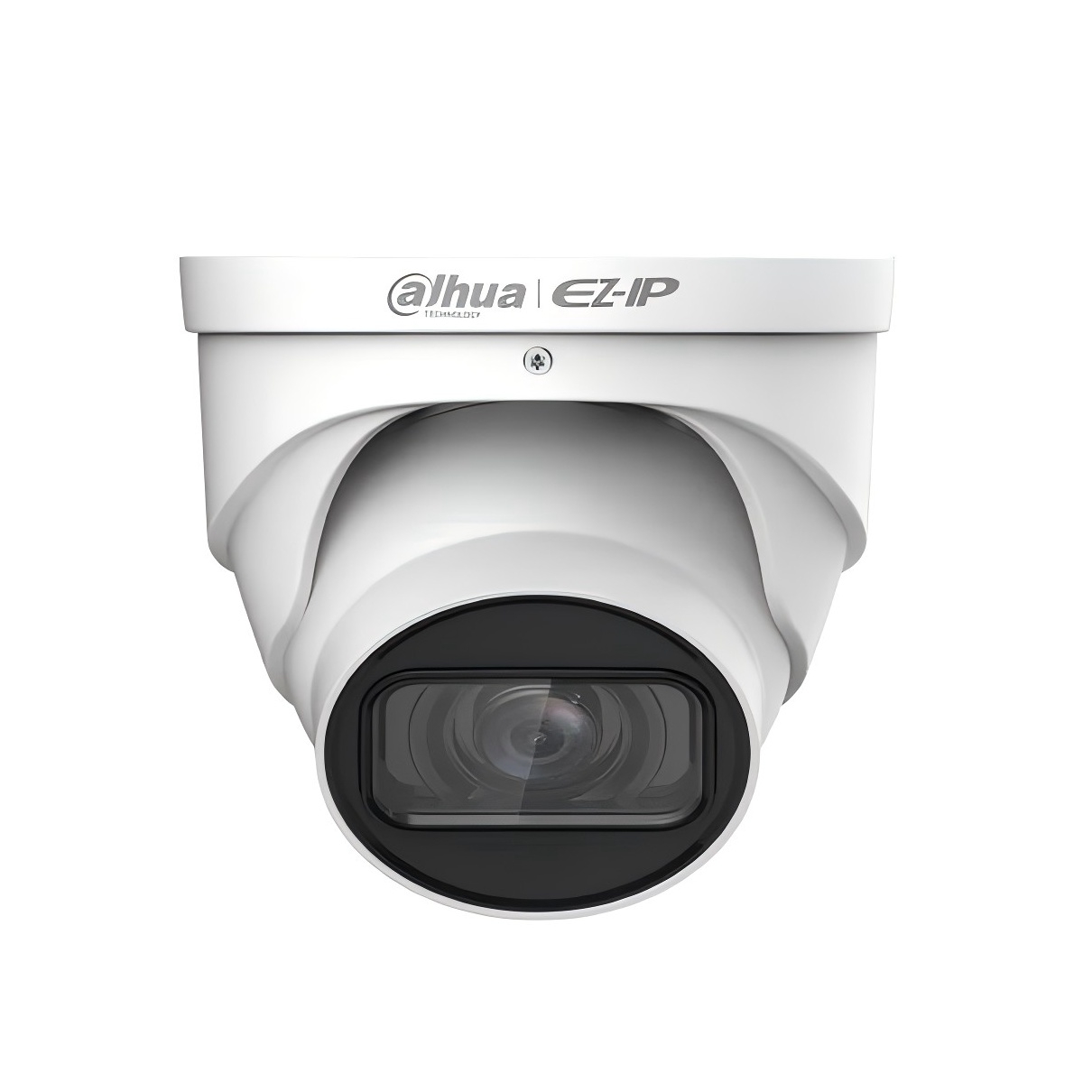

EZ-HAC-T4A51-Z

Descripción

Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
S/N Ratio > 65 dB
Min. Illumination 0.01 Lux/F1.6; 30IRE; 0 Lux IR on
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Auto Focus N/A
Mount Type Φ14
Focal Length 2.7 mm–12 mm
Max. Aperture F1.6
Field of View
Diagonal: 39°–130°
Horizontal: 34°–107°
Vertical: 19°–55°
Iris Type Fixed iris
Close Focus Distance 0.5 m (1.64 ft)
DORI
Distance
Detect Observe Recognize Identify
2.7 mm 69 m
(226.37 ft)
27.6 m
(90.55 ft)
13.8 m
(45.27 ft)
6.9 m
(22.63 ft)
12 mm 191.6 m
(628.6 ft)
76.64 m
(251.44 ft)
38.32 m
(125.72 ft)
19.16 m
(62.86 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 ×
1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
www.dahuasecurity.com
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 areas; rectangle)
Certifications
Certifications
CE LVD : EN 62368-1
CE EMC: EN55032 EN55024 EN55035 EN61000-3-2
EN61000-3-3
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply DC 12V ±30%
Power Consumption Max 6.6W (12V DC, IR on)
Environment
Operating Temperature –30°C to +60°C (–22°F to +140°F)
< 95% (non-condensation)
Storage Temperature –30°C to +60°C (–22°F to +140°F)
< 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions φ122.0 mm × 107.0 mm (φ4.80″ × 4.21″)
Net Weight 0.57 kg (1.26 lb)
Gross Weight 0.72 kg (1.59 lb)
