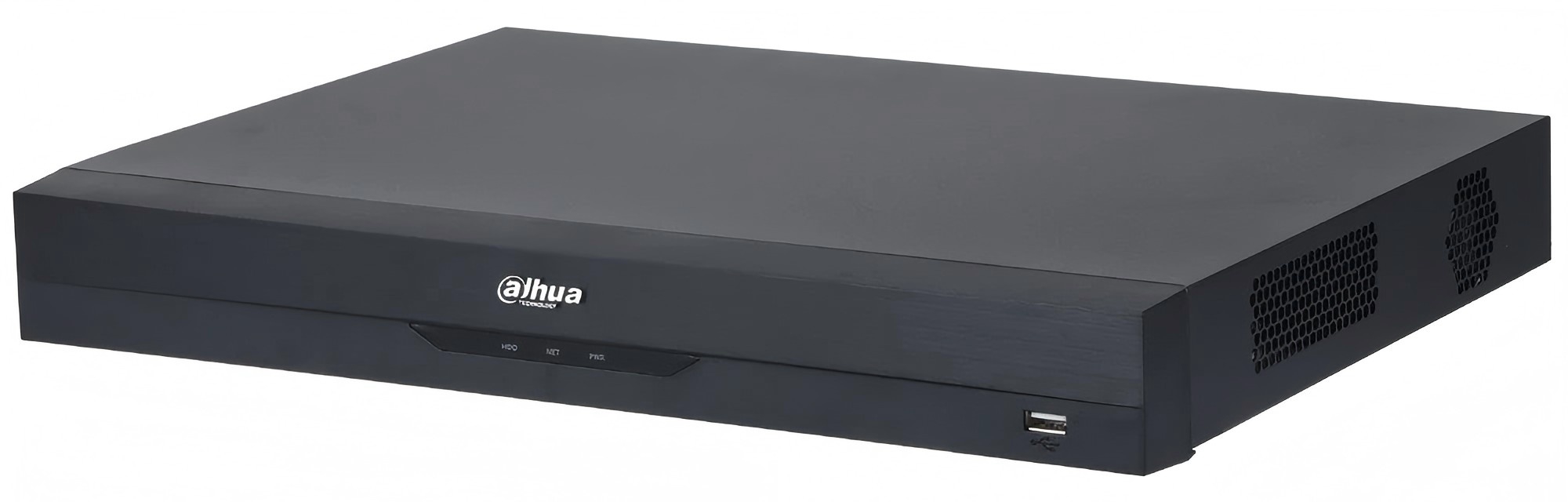

DH-XVR5232AN-I3

Descripción

Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
QuickPick 2.0
QuickPick 2.0 AI by
Recorder (Number of
Channels)
2 channels
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
Advanced Mode: 2 channels, 10 IVS rules for each
channel
General Mode: 8 channels, 10 IVS rules for each
channel
Face Detection
Face Attributes 6 attributes
Face Detection
Performance of AI by
Recorder (Number of
Channels)
2 channels (up to 12 face images/s each channel)
Face Recognition
Face Database Capacity Up to 10 face databases with 10,000 images.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
2 channels
SMD Plus
SMD Plus by Recorder
32 channels: Secondary filtering for human and vehicle,
reducing false alarms caused by leaves, rain and lighting
condition change
SMD Plus by Camera 48 channels
AI Video Quality Analytics
AI Video Quality Analytics
by Recorder
32 channels: Supports detecting brightness levels, color
cast, defocus, overexposure, contrast levels, black and
white
Scene Changing
Scene Changing by
Recorder
1 channel
Irregular Black Block Masking
Irregular Black Block
Masking by Recorder
1 channel
Audio and Video
Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect
Camera Input
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps;
4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps;
720p@25/30fps.
2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x
1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps;
720p@25/30 fps.
3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30
fps; 720p@25/30 fps.
IP Camera Input
Up to 48 channels of IPC access
16 IP channels by default +32 channels (analog
channels are converted to IP channels)
incoming bandwidth: 192 Mbps, recording bandwidth:
192 Mbps and outgoing bandwidth: 192 Mbps
*After IP extension is enabled, Video Quality Analytics,
Scene Changing, Face Recognition, Face Detection,
SMD, Perimeter Protection and QuickPick 2.0 cannot be
used.
Encoding Capacity
Encode Enhancement disabled：
Main stream:
Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others
5M-N@(1 fps–12 fps);
Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps),
others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1 fps–30 fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled：
Main stream:
Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others
5M-N@(1 fps-12 fps); (4 channels can be transformed
to 5MP@6 fps)
Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps),
others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1 fps–30 fps);
Sub stream: D1/CIF@(1 fps–15 fps);
*When Encode Enhancement is enabled, Video Quality
Analytics, Scene Changing, Face Recognition, Face
Detection, Perimeter Protection and QuickPick 2.0
cannot be used.
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output
1 HDMI, 1 VGA, 1 CVBS
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for
VGA and HDMI is configurable.
Multi-screen Display
Main Screen: 1/4/8/9/16/25/36
Sub Screen: 1/4/8/9/16
The sub screen display conflicts with IP extension
function.
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm
Server; P2P; Auto Registration; IP Search (Supports IP
camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
