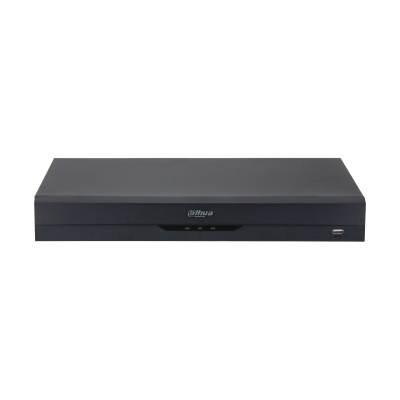

DH-XVR4232AN-I(V2.0)

Descripción

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
SMD Plus
SMD Plus by Recorder
32 channels:
Secondary filtering for human and motor vehicle,
reducing false alarms caused by leaves, rain and lighting
condition change
SMD Plus by Camera 36 channels
Irregular Black Block Masking
Irregular Black Block
Masking by Recorder
1 channel
Audio and Video
Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect
Camera Input
1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 20 channels of IPC access
4 IP channels by default + 16 channels (analog channels
are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth:
128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing
channels, the AI Function SMD will be disabled.
Encoding Capacity
Main stream: the 1st channel 1080N/720p@(1 fps–
25/30 fps), others 1080N/720p@(1 fps–15 fps);
960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual-stream Yes
Video Bit Rate 32 kbps–4096 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output
1 HDMI, 1 VGA，1 TV
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display 1/4/8/9/16/25/36
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm
Server; P2P; Auto Registration; IP Search (Supports IP
camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection
Recording Playback 1/4/9/16
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag
playback; smart playback
Storage
Disk Group Yes
Alarm
General Alarm Motion detection; HDCVI alarm; camera external alarm;
network alarm; PIR alarm
Anomaly Alarm
Error (no disk, disk error, low space, low quota space;
network disconnection; IP conflict; MAC conflict); video
loss; video tampering; camera offline
Intelligent Alarm SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm
output; audio; buzzer; log; preset; email
Ports
TV Output 1 channel
Audio Input 1-channel RCA
32-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
Disk Interface
2 SATA ports. Each disk can contain up to 16
TB. This limit varies depending on the environment
temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 4 A
Power Consumption <12 W(without HDD)
Net Weight 1.92 kg (4.23 lb)
Gross Weight 3.09 kg (6.81 lb)
Product Dimensions 375.0 mm × 289.6 mm × 53.0 mm (14.76″ × 11.40″ ×
2.09″ ) (W × D × H)
Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05″ × 5.55″ ×
14.41″) (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop
