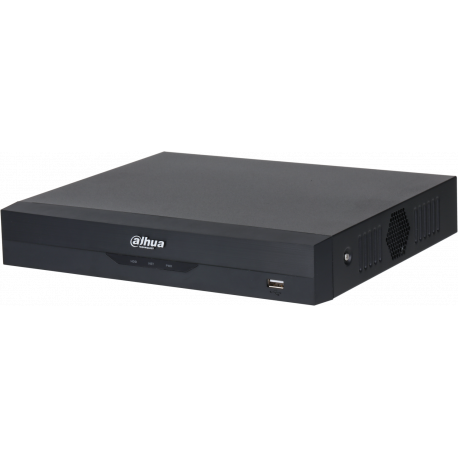

DH-XVR4116HS-I

Descripción

System
Main Processor Embedded processor
Operating System Embedded linux
SMD Plus
Performance 8 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 16 channels, BNC
HDCVI Camera 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD Camera 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera 1080p@ 25/30 fps, 720p@25/30 fps
CVBS Camera PAL/NTSC
IP Camera Input 16+2 channels: each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 1080N; 720p; 960H; D1; CIF
Record Rate
Main Stream:
the 1st channel 1080N/720p (1 fps–25/30 fps), others
1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps)
Sub steram:
CIF (1 fps–7 fps)
Video Bit Rate 32 kbps–4096 kbps per channel
Record Mode
Manual; Schedule (General, Continuous); MD (Video
detection: Motion Detection, Video Loss, Tampering); Alarm;
Stop
Record Interval 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec,
Post-record: 10 sec–300 sec
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate 8 KHz, 16 bit per channel
Audio Bit Rate 64 kbps per channel
Display
Interface 1 HDMI; 1 VGA
Resolution 1920 × 1080; 1280 × 1024; 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16
OSD Camera title; Time; Video loss; Camera lock; Motion
detection; Recording
Network
Interface 1 RJ-45 Port (100 MB)
Network Function
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UPnP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP;
Alarm Server; P2P; IP Search (Supports Dahua IP camera,
DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone; iPad; Android

Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File,
Previous File; Next Camera; Previous Camera; Full Screen;
Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA port, up to 10 TB capacity
eSATA N/A
Auxiliary Interface
USB 2 USB ports (USB 2.0)
RS232 N/A
RS485 1 port, for PTZ control
Electrical
Power Supply DC 12V/2A
Power Consumption
(without HDD) < 10W
Construction
Dimensions Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm
(10.24” × 9.37” × 1.87”)
Net Weight
(without HDD) 1.042 kg (3.00 lb)
Gross Weight 1.48 kg (3.26 lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 10%–90% (RH)
Storage Conditions -20°C to +70°C (-4°F to +158°F), 0%–90% (RH)
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130;
EN 55024
UL: UL 60950-1
