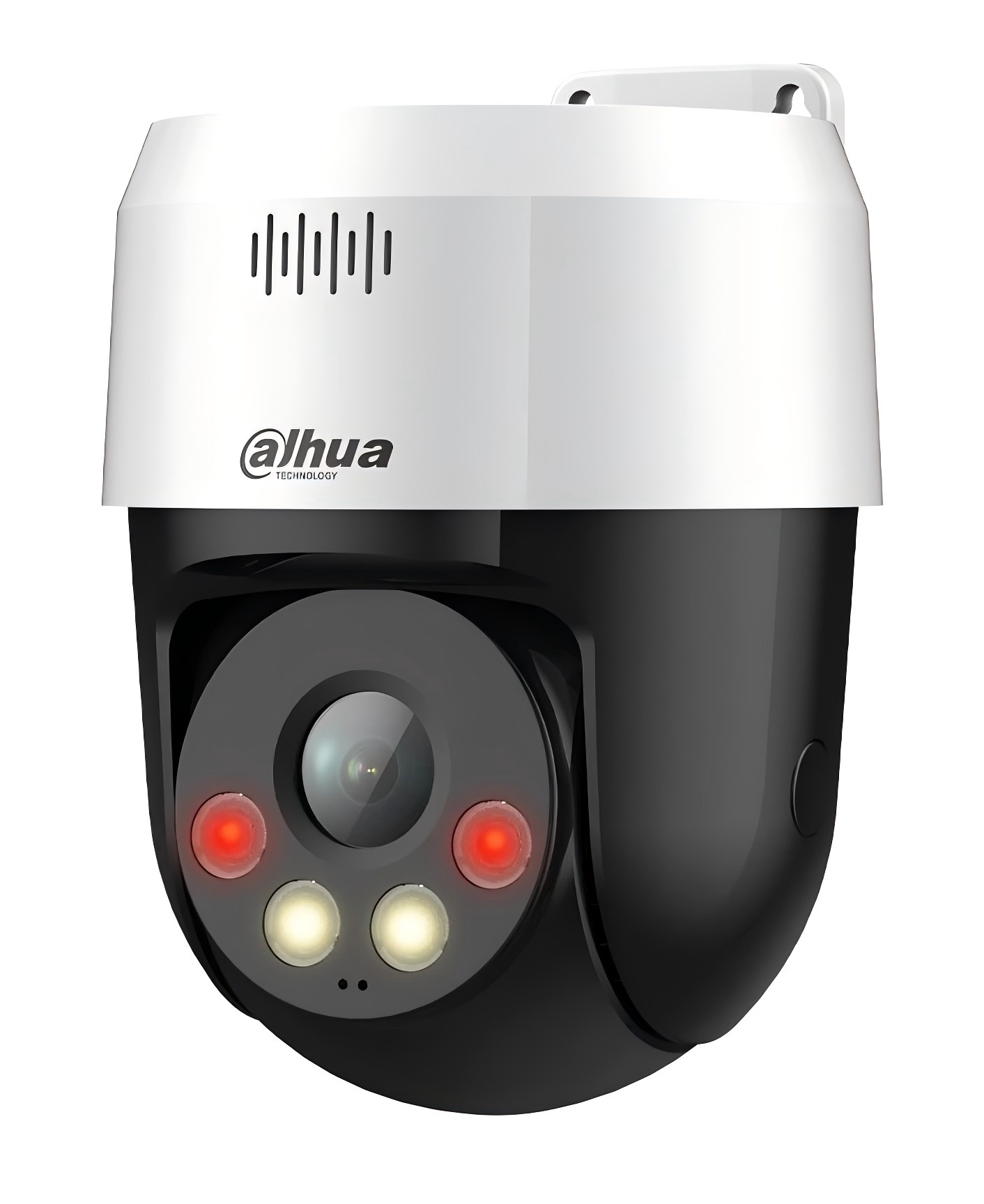

DH-SD2A500NB-GNY-A-PV

1/2.8″ CMOS

5 MP

2560 (H) × 1920(V)

128 MB

128 MB

1 s–1/100,000 s

Progressive

0.05 lux@F1.6 (Color, 30 IRE);

0.005 lux@F1.6 (B/W, 30 IRE);

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);

Manual; auto; off

2 (IR light); 2 (warm light)

4.0 mm

F1.6

H: 80.4°; V: 58.1°; D: 104.8°

0.3 m (0.98 ft)

Fixed

( 253.94 ft)

( 101.71 ft)

( 50.85 ft)

( 25.39 ft)

Pan: 0° to 345°;

Tilt: 0° to +80°

Pan: 0.1°–74°/s;

Tilt: 0.1°–36.4°/s

Pan: 0.1°–62°/s;

Tilt: 0.1°–36.3°/s

300

Yes

Preset

Tripwire; intrusion

Yes

SMD 3.0

Warm light warning;

Flash duration: 5 s–30 s;

Flash frequency: high, medium, low

Offers 1 sound alarm and 10 custom sound alarms can be imported;

Sound can be set from 0%–100%;

Play times can be set from 1-10.

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

2 streams

5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

CBR/VBR

H264: 104 kbps-8,192 kbps

H265: 41 kbps-8,192 kbps

Auto (ICR); Color/B/W

Yes

DWDR

Yes

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Auto; manual

2D NR; 3D NR

Yes

Yes

Electronic

180°

4 area

≥55 dB

PCM；G.711a；G.711Mu；G.726；AAC；

RJ-45 (10/100 Base-T)

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P

Unicast/Multicast

20 (total bandwidth: 64 M)

Micro SD card (256 GB); FTP

IE: IE 7 and later versions; Chrome; Firefox; Safari

Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player

iOS;Android

CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-

3-2/EN55024/EN55035/EN62368-1

FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

1 channel (built-in mic)

1 channel (built-in speaker)

Capture; preset; recording; audio; sending email

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

12 VDC/1.5 A ± 10% PoE (802.3af)

Basic: 3.5 W;

Max: 10 W (illuminator)

Optional

–30 °C to +55 °C (–22 °F to +131 °F)

≤95%

TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof

140.5 mm × Φ111.0 mm (5.53″ × Φ4.37″)

0.5 kg (1.10 lb)

1 kg (2.20 lb)

* The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model
