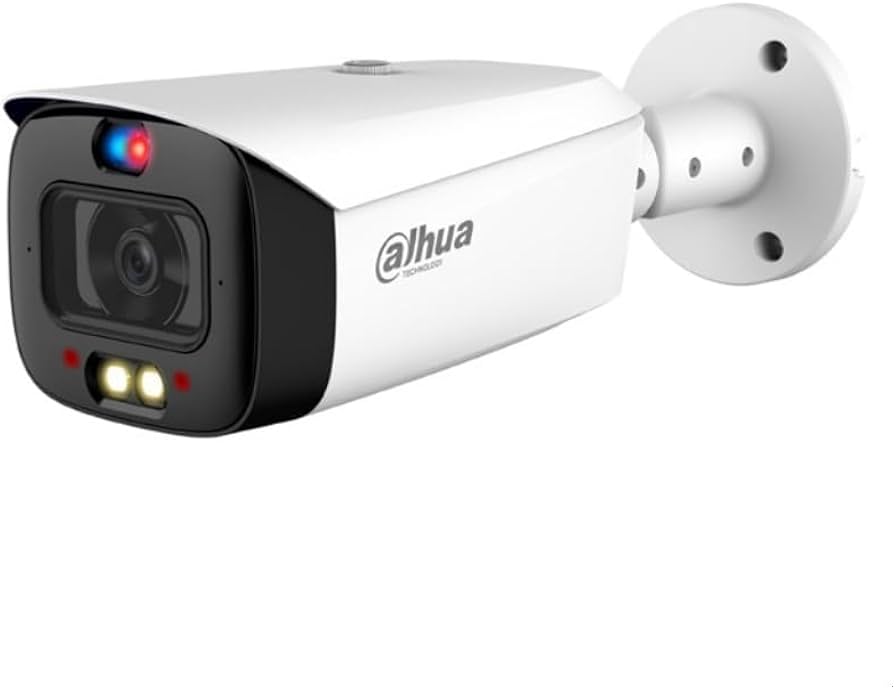

DH-IPC-HFW3849T1-AS-PV

Descripción

Image Sensor 1/2.7″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm;3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85; V: 45°; D: 102°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 66.0 m
(216.54 ft)
26.4 m
(86.61 ft)
13.2 m
(43.31 ft)
6.6 m
(21.65 ft)
3.6 mm 78.0 m
(255.91 ft)
22.2 m
(102.36 ft)
15.6 m
(51.18 ft)
7.8 m
(25.59 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4)
for defining the ability of a person viewing the video to distinguish persons or
objects within a covered area. The numbers in this table do not reflect intelligent
function distances. For intelligent function distances, refer to installation and
commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and
human), stay detection, loitering detection
Face Detection (Full
Image)
Face detection; snapshot; snapshot optimization; optimal
face snapshot upload; face enhancement; face snapshot
set as face or one-inch photo; snapshot strategies
(real-time snapshot, quality priority and optimization
snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
Smart Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
AcuPick
Uses deep learning algorithms and works with back-end
devices to accurately match targets, such as people and
motor vehicles, and search through live and recorded
videos to quickly locate targets.
AI SSA Adopt deep learning algorithms to adjust the parameters
of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported
by sub stream)
AI Coding
AI H.265; AI H.264
*Includes smart codec technology, Smart H.265+ and
Smart H.264+
Video Frame Rate
Main stream: 3840 × 2160 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1
fps–30 fps)
Third stream: 1920 × 1080@ (1 fps–25/30 fps)
*The values above are the max. frame rates of each
stream; for multple streams, the values will be subjected
to the total encoding capacity.
Stream Capability 3 streams
Resolution
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M
(2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×
480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation
(SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional
custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520
resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker
Yes, built-in speaker
Max power consumption: 2 W; max sound level at 10
cm: 110 dB
* Test results from laboratory
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
