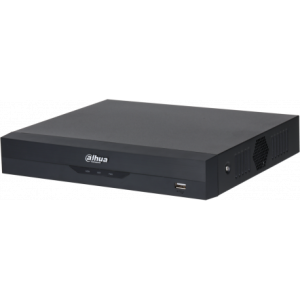

DH-XVR5104HS-4KL-I3

Descripción

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
Advanced Model : 1 channel, 10 IVS for each channel
General Model : 4 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask;
beard
Face Detection
Performance of AI by
Recorder (Number of
Channels)
1 channel (up to 8 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases and 20,000 images.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
1 channel
SMD Plus
SMD Plus by Recorder
4-channel: Secondary filtering for human and motor
vehicle , reducing false alarms caused by leaves, rain and
lighting condition change
Audio and Video
Analog Camera Input 4 channels, BNC: adaptive access by default; HDCVI, AHD,
TVI and CVBS access can be configured.
Camera Input
1. CVI: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps,
720p@50/60 fps, 720p@25/30 fps.
2. TVI: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps,
720p@25/30 fps.
3. AHD: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps,
720p@25/30 fps.
IP Camera Input
Up to 8 channels of IPC access
4 IP channels by default + 4 channels (analog channels
are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64
Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing
channels, the AI Function (IVS, SMD, FACE) will be
disabled.
Encoding Capacity
Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps–
10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15
fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);
Sub steram: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30
fps)
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output
1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9
Third-party Camera
Access
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon;
Samsung
Compression Standard
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP;
DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.06; CGI Conformant
Browser
Chrome
IE9 or later
Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC
conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output,
access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input 1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity
varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 USB ports (USB 2.0)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7 W
Net Weight 0.53 kg (1.17 lb)
Gross Weight 1.07 kg (2.36 lb)
Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” ×
1.87”) (W × D × H)
